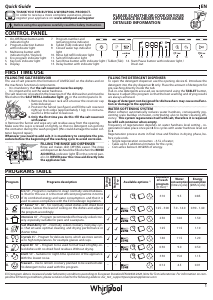

ENQuick Guide

1

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance, please

register your appliance on: www.whirlpool.eu/register

CONTROL PANEL

FIRST TIME USE

1. On-O/Reset button with

indicator light

2. Program selection button

with indicator light

3. Multizone button with

indicator light / Keylock

4. Eco program indicator light

5. Key lock indicator light

6. Display

Program Programs description

Drying

phase

Natural-

Dry

Available options

*)

Duration

of wash

program

(h:min)

**)

Water

consumption

(litres/cycle)

Energy

consumption

(kWh/cycle)

1.

Eco 50°- Program is suitable to clean normally soiled tablewa-

re. that for this use. it is the most ecient programme in terms

of its combined energy and water consumption. and that it is

used to assess compliance with the EU Ecodesign legislation.

3:10 9.5 0.85

2.

6

th

Sense® 50°- 60°- For normally soiled dishes with dried food

residues. Senses the level of soiling on the dishes and adjusts

the program accordingly.

1:25 - 3:00 7.0 - 14.0 0.90 - 1.40

3.

Intensive 65° - Program recommended for heavily soiled croc-

kery. especially suitable for pans and saucepans.

2:50 14.0 1.50

4.

Fast Wash&Dry 50° - Normally soiled crockery. Everyday cyc-

le. that ensures optimal cleaning and drying performance in

shorter time.

1:25 11.5 1.10

5.

Crystals 45° - Program for delicate items. which are more sensiti-

ve to high temperatures. for example glasses and cups.

1:40 11.5 1.20

6.

Rapid 30’ 50° - Program to be used for half load of lightly-so-

iled dishes with no dried food residues. Without drying.

- -

0:30 9.0 0.50

7.

Silent 50° - Suitable for night-time operation of the appliance.

With the lowest noise.

3:30 15.0 1.15

8.

Prewash - Use to refresh crockery planned to be washed later.

No detergent to be used with this program.

-

-

0:12 4.5 0.01

PROGRAMS TABLE

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR

APPLIANCE IN ORDER TO HAVE MORE

DETAILED INFORMATION

3

1

2

8

13

14

5

4

6

7 11 12

9

10

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on

the machine’s functional components.

• It is mandatory that the salt reservoir never be empty.

• It is important to set the water hardness.

The salt reservoir is located in the lower part of the dishwasher and must be

lled when the SALT REFILL indicator light in the control panel is lit.

1. Remove the lower rack and unscrew the reservoir cap

(anticlockwise).

2. Position the funnel (see gure) and ll the salt reservoir

right up to its edge (approximately 1 kg); it is not unu-

sual for a little water to leak out.

3. Only the rst time you do this: ll the salt reservoir

with water.

4. Remove the funnel and wipe any salt residue away from the opening.

Make sure the cap is screwed on tightly, so that no detergent can get into

the container during the wash program (this could damage the water sof-

tener beyond repair).

Whenever you need to add salt, it is mandatory to complete the pro-

cedure before the beginning of the washing cycle to avoid corrosion.

A

C

D

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse

aid dispenser A should be lled when the RINSE

AID REFILL indicator light in the control pan-

el is lit. NEVER pour the rinse aid directly into

the appliance tub.

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the

detergent into the dry dispenser D only. Place the amount of detergent for

pre-washing directly inside the tub.

If all-in-one detergents are used, we recommend using the TABLET button,

because it adjusts the program so that the best washing and drying results

are always achieved.

Usage of detergent not designed for dishwashers may cause malfunc-

tion or damage to the appliance.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently pre-

venting scale buildup on heater, contributing also to better cleaning e-

ciency. This system regenerates itself with salt, therefore it is required

to rell salt container when empty.

Frequency of regeneration depends on water hardness level setting - re-

generation takes place once per 6 Eco cycles with water hardness level set

to 3.

Regeneration process starts in nal rinse and nishes in drying phase, be-

fore cycle ends.

• Single regeneration consumes: ~3.5L of water;

• Takes up to 5 additional minutes for the cycle;

• Consumes below 0.005kWh of energy.

7. Program number and

remaining time indicator

8. Tablet (Tab) indicator light

9. Closed water tap indicator

light

10. Rinse Aid rell indicator light

11. Salt rell indicator light

12. Sani Rinse button with indicator light / Tablet (Tab)

13. Delay button with indicator light

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.

Note for Test Laboratories: For information on com-

parative EN testing conditions, please send an email to the following address: [email protected]om

14. Start/Pause button with indicator light /

Drain out
